Product Overview
The Surface Cleaner Replacement Brush is a circular nylon brush skirt designed for installation around pressure washer surface cleaners and high-pressure floor cleaning equipment. During cleaning, the dense bristles form a flexible barrier around the cleaning head, helping to contain water spray, dirt and debris while the machine moves across the working surface.

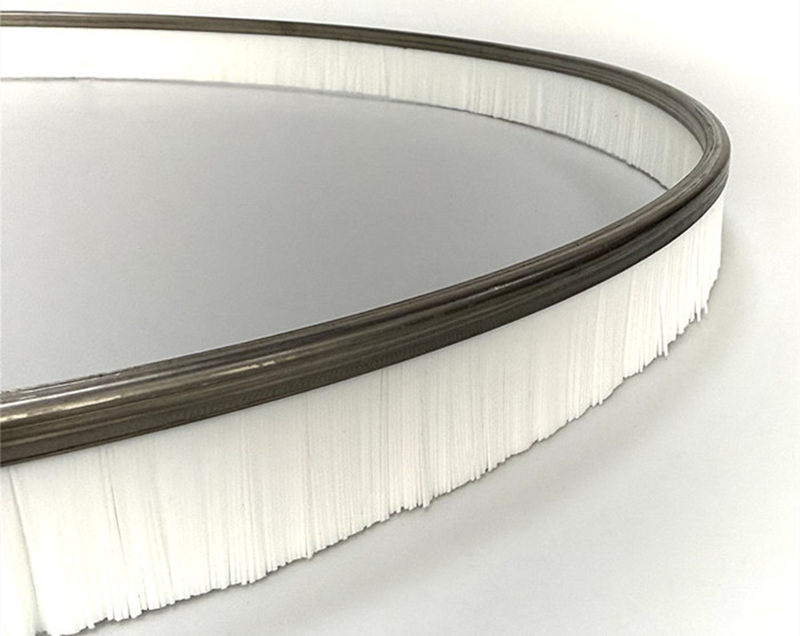

The brush is manufactured from a formed cup strip brush and assembled with a stainless steel support profile to maintain the required circular shape. High-density nylon bristles provide the flexibility and durability needed for repeated contact with floors and other cleaning surfaces.
Depending on the cleaner design, the brush skirt can also be produced with notched sections that allow larger debris to pass through while the surrounding bristles continue to control splash and spray. Standard sizes include 15″, 18″, 20″, 21″ and 24″, and custom diameters can be manufactured for different surface cleaner models.
Product Features
- Splash and Debris Control – Dense nylon bristles form a flexible skirt around the surface cleaner head, helping to contain water spray, dirt and debris during high-pressure cleaning.
- High-Density Nylon Bristles – Durable nylon filaments provide consistent coverage around the cleaning head while remaining flexible enough to move across the working surface.
- Notched Brush Design Available – Sections of the brush skirt can be manufactured with notches to allow larger debris to enter or pass through the cleaning area without removing the surrounding splash-control barrier.
- Stainless Steel Support Profile – The formed brush is fitted into a stainless steel support structure that maintains the circular shape and provides a secure mounting base.
- Multiple Standard Sizes – Common diameters include 15″, 18″, 20″, 21″ and 24″ for different pressure washer surface cleaner sizes.
- Replacement and Custom Production – Brushes can be manufactured as replacement parts according to the required diameter, dimensions, drawing or existing sample.
Specifications

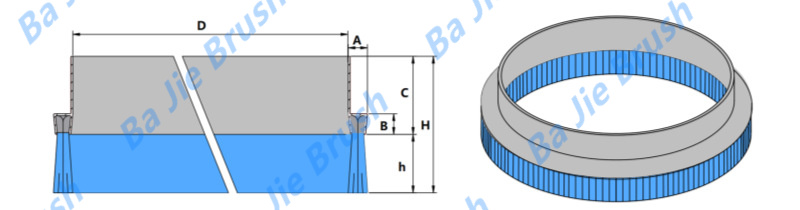

| Specification | Available Options |
|---|---|
| Product Type | Surface Cleaner Replacement Brush / Nylon Brush Skirt |
| D – Brush Diameter | 15″, 18″, 20″, 21″, 24″ / Custom Sizes |
| A – Support Profile Width | Customizable |
| B – Brush Backing Height | Customizable |
| C – Support Profile Height | Customizable |
| H – Total Height | Customizable |
| h – Bristle Height | Customizable |
| Bristle Material | Nylon (PA) |
| Bristle Color | Black / White / Other Colors Available |
| Support Material | Stainless Steel |
| Bristle Design | Continuous / Notched |
| Custom Production | According to Drawing, Sample or Required Dimensions |
Applications

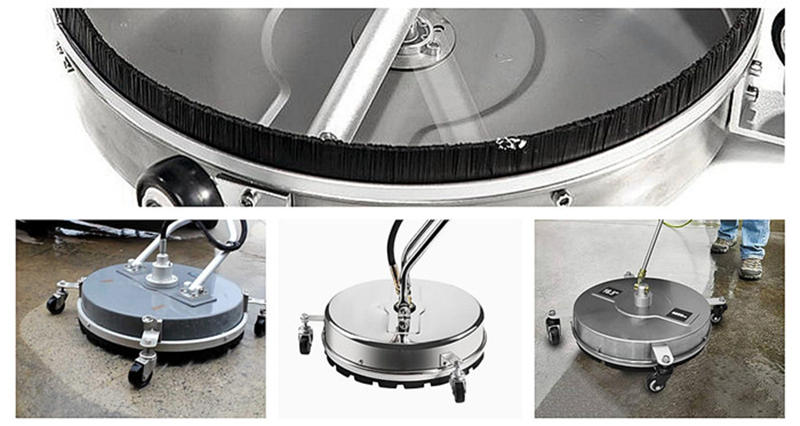

The surface cleaner replacement brush is designed primarily for pressure washer surface cleaners and high-pressure floor cleaning equipment. Installed around the outer edge of the cleaner housing, the nylon brush skirt stays close to the working surface while the spray nozzles rotate inside the cleaning head.
- Pressure Washer Surface Cleaners – Used as a replacement brush skirt around round surface cleaner housings to help control water spray and debris during operation.
- Commercial Floor Cleaning – Suitable for surface cleaning equipment used on concrete floors, driveways, workshops and other large hard surfaces.
- Splash Guard Replacement – Replaces worn or damaged nylon brush guards when the original bristles become deformed, worn or insufficient for effective splash control.
- OEM & Custom Cleaning Equipment – Custom diameters and brush dimensions can be produced for cleaning equipment manufacturers and replacement-parts suppliers.
Frequently Asked Questions
What sizes are available for surface cleaner replacement brushes?
We offer common sizes including 15″, 18″, 20″, 21″ and 24″. Custom diameters can also be manufactured according to the dimensions of your surface cleaner.
What is the purpose of the nylon brush skirt on a surface cleaner?
The nylon brush skirt forms a flexible barrier around the cleaning head, helping to contain water spray and debris while allowing the surface cleaner to move across the floor or other working surface.
Why do some surface cleaner brushes have notched bristles?
Notched sections allow larger debris to pass through the brush skirt while the remaining high-density nylon bristles continue to provide splash and debris control around the cleaning head.
Can you manufacture a replacement brush for my surface cleaner?
Yes. We can manufacture replacement brushes according to the required diameter, bristle height and support dimensions. You can also send us a drawing, photo or existing sample to help confirm the required construction.
