Cup strip brushes are formed by bending metal channel strip brushes into a cup-shaped configuration. The bristles can be positioned in different directions according to the required contact area and application.
BaJie Brush manufactures custom cup strip brushes in different diameters, heights, bristle materials and metal channel materials for sealing, cleaning, wiping and other industrial applications.

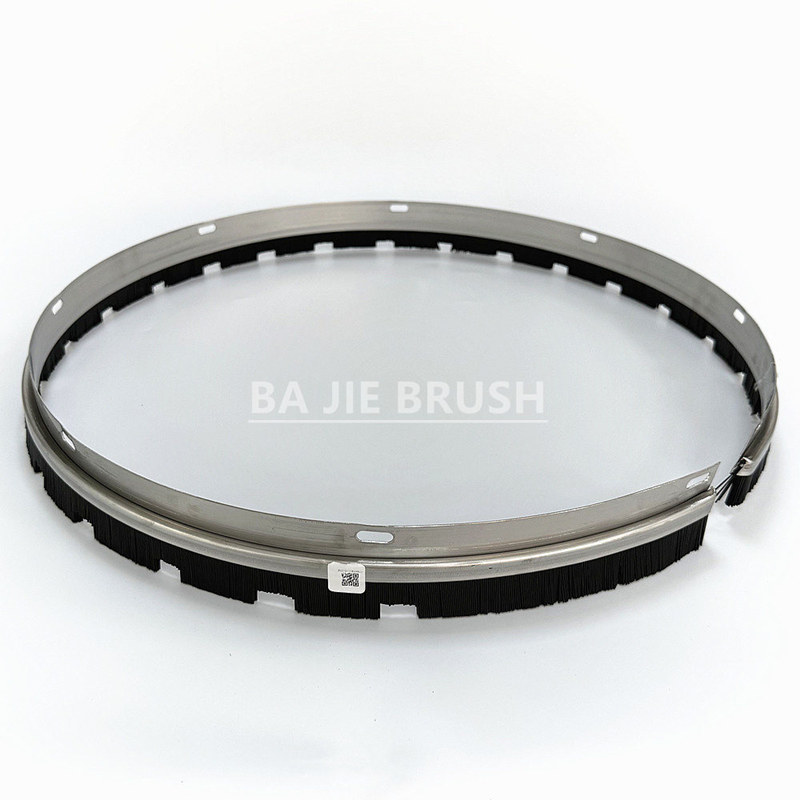

Replacement nylon brush skirt for pressure washer surface cleaners, designed to help contain water spray and debris during floor and surface cleaning. Available in 15″, 18″, 20″, 21″ and 24″ sizes, with custom diameters available.

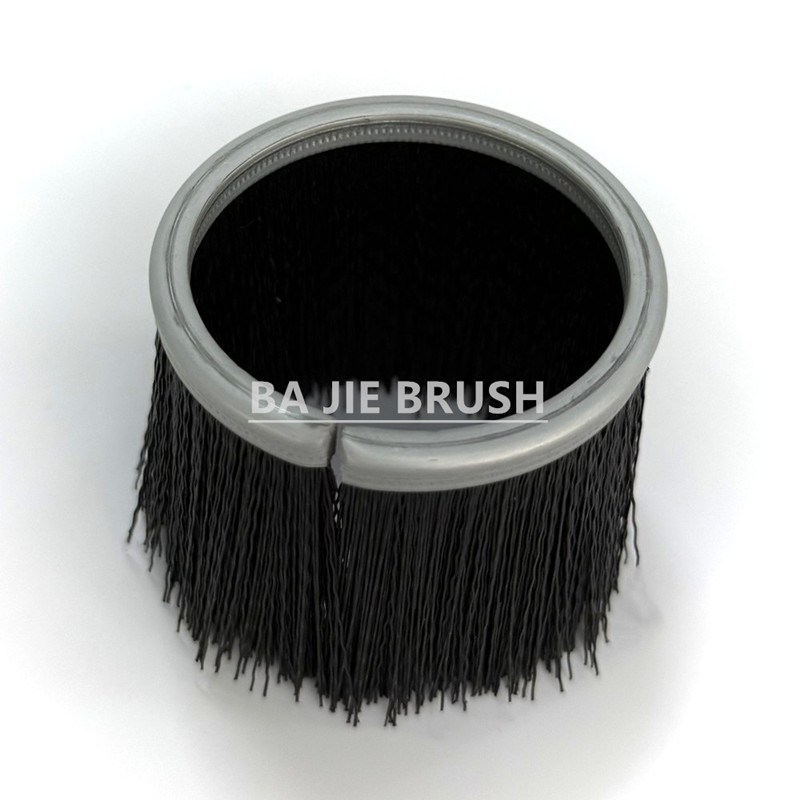

Cup strip brush formed from a metal channel strip brush into a circular cup shape for sealing and cleaning around round surfaces and machine openings. Available with custom diameters, angled or vertical bristle orientations, multiple filament materials, and galvanized or stainless steel backing.
BaJie Brush manufactures custom cup strip brushes by forming metal channel strip brushes into cup-shaped configurations. This construction provides a continuous circular brushing surface and can be customized according to the required contact area and installation dimensions.
Cup strip brushes are available in different diameters, heights, bristle materials, bristle densities and metal channel materials. They are manufactured according to customer drawings, samples or specific application requirements.
A cup strip brush starts with a metal channel strip brush in which the bristles are securely held inside a metal backing channel. The strip brush is then formed into the required circular and cup-shaped configuration.
The final dimensions and shape can be adjusted according to the required working diameter, brush height and installation method.
A cup strip brush is different from a conventional wire cup brush commonly used with grinders and other power tools. Cup strip brushes are formed from metal channel strip brushes and are primarily designed as custom industrial brush components for machinery and equipment.
This construction allows the diameter, bristle direction, bristle material, density and metal channel to be customized for specific sealing, cleaning, wiping and contact applications.
Cup strip brushes can be manufactured with different bristle materials, including nylon, PP, PBT, horse hair, abrasive filament, brass wire, stainless steel wire and other materials according to the application.
Galvanized steel and stainless steel are commonly used for the metal channel. The appropriate bristle and channel materials can be selected according to flexibility, wear resistance, temperature, corrosion resistance and required brushing performance.
Cup strip brushes are custom manufactured according to the required dimensions. Important specifications include the inside diameter, outside diameter, overall height, bristle height, bristle material, filament diameter, bristle density and metal channel material.
Because cup strip brushes are formed products, providing accurate installation and working dimensions helps us determine the appropriate brush construction.
Cup strip brushes are used in industrial machinery and equipment for sealing, cleaning, wiping, shielding and surface contact. Their circular cup-shaped construction is particularly suitable for applications requiring continuous brush contact around round components or openings.
The brush dimensions, bristle density and materials can be adjusted according to the required contact pressure, flexibility and working environment.
BaJie Brush manufactures cup strip brushes according to customer drawings, samples and application requirements. Different diameters, heights, bristle materials, densities and metal channel materials can be customized for different industrial applications.
If you are unsure about the appropriate specifications, send us your installation dimensions and application information, and we can recommend a suitable brush construction.
When requesting a quotation for a custom cup strip brush, please provide the main dimensions and application requirements, including:
A technical drawing, photo or existing sample can also help us determine the correct construction and dimensions.
A cup strip brush is a formed brush made by bending a metal channel strip brush into a circular, cup-shaped configuration. Its dimensions, bristles and metal channel can be customized for different industrial applications.
No. A conventional wire cup brush is typically a power tool accessory used for aggressive surface cleaning. A cup strip brush is formed from a metal channel strip brush and is generally manufactured as a custom component for industrial machinery and equipment.
Cup strip brushes can be manufactured with nylon, PP, PBT, horse hair, abrasive filament, brass wire, stainless steel wire and other materials depending on the application.
Yes. Cup strip brushes can be manufactured according to customer drawings, samples, dimensions and application requirements.
Send us your drawing, required dimensions or application details. Our team can help you select the suitable cup strip brush design, bristle material and specifications for your application.
